CYC Fiberglass Chopped Strand Mat (ECY-CSM)

CYC Fiberglass Chopped Strand Mat (ECY-CSM)

    • CYC Fiberglass Chopped Strand Mat (ECY-CSM)
    • CYC Fiberglass Chopped Strand Mat (ECY-CSM)
    • CYC Fiberglass Chopped Strand Mat (ECY-CSM)
    • CYC Fiberglass Chopped Strand Mat (ECY-CSM)
    • CYC Fiberglass Chopped Strand Mat (ECY-CSM)
    • CYC Fiberglass Chopped Strand Mat (ECY-CSM)
    • CYC Fiberglass Chopped Strand Mat (ECY-CSM)
    • CYC Fiberglass Chopped Strand Mat (ECY-CSM)
    • CYC Fiberglass Chopped Strand Mat (ECY-CSM)
    • CYC Fiberglass Chopped Strand Mat (ECY-CSM)
    • CYC Fiberglass Chopped Strand Mat (ECY-CSM)
    • CYC Fiberglass Chopped Strand Mat (ECY-CSM)
  • CYC Fiberglass Chopped Strand Mat (ECY-CSM)

    Product Details:

    Place of Origin: Chengdu, China
    Brand Name: CYC
    Certification: ISO9001:2008
    Model Number: ECY-CSM100P/E-1040

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000KG
    Price: US$ 1290~1450/MT
    Packaging Details: Standard Exporting Carton and Pallet
    Delivery Time: 10~20 days around
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 10000MT per Month
    Contact Now
    Detailed Product Description
    Glass Type: E-Glass Fiber Chopped Length: 50mm
    Binder Type: Powder, Emulsion Roll Width: 200-3200mm
    Roll Length: 50~100meters

    E-glass Lower Weight of Fiberglass Chopped Strand Mat (CSM)

    E-glass Lower Weight of Fiberglass Chopped Strand Mat (CSM) is made from E-glass lower tex chopped strands around 50mm length, bonded together by powder or emulsion binder which makes it perfectly compatible with polyester resins, unsaturated resins and epoxy resins. It is suitable for applications by hand lay-up ,mold process to make FRP (Fiberglass Reinforced Polymer) sheets and panels, vehicles, boat hulls, cooling towers, etc.



    Product Characteristics:

    a. High smoothness of the laminate surface

    b. Good compatibility with vinylester, epoxy resins

    c. Good drapability

    d. Highly suitable for good surface appearance

    e. Highly suitable for first layer with gel coat

    Type of Glass

    E-glass

    Chopped Strand Mat Areal weight(g/m2)

    100~225

    Chopped Strand Mat Roll Width(mm)

    200~3200

    Binder Type

    Powder or Emulsion




    Technical Parameters:

    Areal weight (%)

    Roll Width

    Moisture Content (%)

    LOI Content (%)

    ±10%

    ±5mm

    ≤0.2%

    2~4%



    Product Parameters:

    Product   Code

    Glass type

    Unite weight (g/m2)

    Width(mm)

    Roll weight (kg)

    Moisture (%)

    Binder content (%)

    ECY-CSM100P/E

    E Glass

    100±20

    200-3200

    30-70

    <0.2-0.3

    2-6

    ECY-CSM150P/E

    E Glass

    150±20

    200-3200

    30-70

    <0.2-0.3

    2-6

    ECY-CSM200P/E

    E Glass

    200±20

    200-3200

    30-70

    <0.2-0.3

    2-6

    ECY-CSM300P/E

    E Glass

    300±20

    200-3200

    30-70

    <0.2-0.3

    2-6

    ECY-CSM450P/E

    E Glass

    450±30

    200-3200

    30-70

    <0.2-0.3

    2-6

    ECY-CSM600P/E

    E Glass

    600±30

    200-3200

    30-70

    <0.2-0.3

    2-6

    ECY-CSM900P/E

    E Glass

    900±40

    200-3200

    30-70

    <0.2-0.3

    2-6

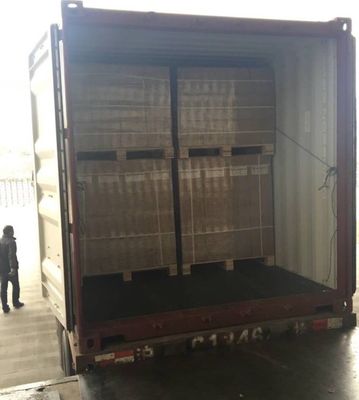

    Packaging:

    E-glass Lower Weight of Fiberglass Chopped Strand Mat (CSM) is wound onto a paper tube which has an inside diameter of 80mm. The roll outside diameter is approximately 275mm. Each roll is wrapped up in plastic film and then packed in a carton. The rolls are stacked horizontally or vertically onto pallets. All pallets are stretch wrapped and strapped to maintain stability during transport.

    Package height(mm)

    Width+50

    Package inside diameter (mm)

    80

    Package outside diameter(mm)

    275

    Package weight(kg)

    35

    Palletlength (mm)

    1140

    1400

    Pallet width (mm)

    1140

    1140

    Pallet height (mm)

    Width+50

    Width+50



    Storage:

    E-glass Lower Weight of Fiberglass Chopped Strand Mat (CSM) should be stored in its original packaging in a dry, cool and water-proof place. The recommended conditions are at temperatures from 15°C  to 35°C and humidity between 35% and 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layer, care should be taken to correctly and smoothly move the top pallet.



    Certificate:

    CYC Fiberglass Chopped Strand Mat (ECY-CSM)
