    Product Details:

    Place of Origin: Chengdu, China
    Brand Name: CYC
    Certification: ISO9001:2008
    Model Number: CCY-T240H-1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 100SQM
    Price: USD16~25/SQM
    Packaging Details: Packed by Standard Export Cartons & Pallets
    Delivery Time: around 30~50 days during COVID-19
    Payment Terms: T/T, L/C, Western Union, D/P, T/T, MoneyGram
    Supply Ability: 100000sqm per month
    Contact Now
    Detailed Product Description
    Fiber Type: Carbon Fiber Carbon Fiber Yarn: 1K, 3K, 6K, 12K, 24K
    Carbon Fiber Grade: CCY35, CCY40, CCY45, CCY49 Weaving Pattern: Plain, Twill, Satin And Jacquard

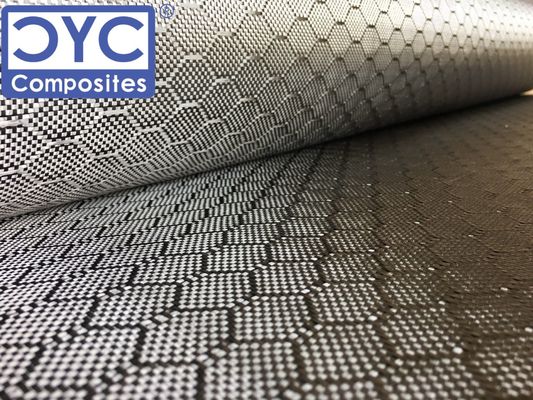

    CYC CARBON FIBER WOVEN CARBON FABRIC


    CYC Carbon Fiber Woven Carbon Fabric is made of advanced carbon fiber, which is interweaved by a certain rule on the loom. According to the weaving methods, it is classified into plain fabrics, twill fabrics and satin fabrics. As per carbon fiber’s excellent tensile strength and tensile modulus, light weight and good mechanical properties, carbon fiber fabrics are widely used in high performance composites such as airspace industry, automobile industry, wind turbine blades, high pressure CFRP pipes, sports goods, shipbuilding, civil construction and prepreg, etc.

    Carbon Fiber Yarn Density & Grade 1K, 3K, 6K, 12K, 24K (T300/T400/T700)
    Area Weight 125~600 g/m²
    Weave Pattern Plain, Twill, Satin, Jacquard



    PRODUCT FEATURES

    High strength
    Light weight
    Excellent corrosion resistance

    Outstanding uniform sooth surface



    TYPICAL PRODUCT SPECIFICATIONS

    Product Code

    Area Weight

    (g/m²)

    Thickness

    (mm)

    Yarn Density (ends/cm) Carbon Fiber Width (mm) Weave Pattern
    Warp weft
    CCY-1K-P140L-1000 140 0.17 10.5 10.5 1K-T300 1000 Plain
    CCY-1K-T140L-1000 140 0.17 10.5 10.5 1K-T300 1000 2x2 Twill
    CCY-1K-S200L-1000 200 0.21 15 15 1K-T300 1000 8H Satin
    CCY-3K-P200L-1000 200 0.25 5 5 3K-T300 1000 Plain
    CCY-3K-T200L-1000 200 0.25 5 5 3K-T300 1000 2x2 Twill
    CCY-3K-J220L-1000 220 0.22 5 5 3K-T300 1000 Jacquard
    CCY-3K-J240L-1000 240 0.24 6 6 3K-T300 1000 Jacquard
    CCY-3K-T220L-1000 220 0.28 5.5 5.5 3K-T300 1000 2x2 Twill
    CCY-3K-P240L-1000 240 0.30 6 6 3K-T300 1000 Plain
    CCY-3K-T240L-1000 240 0.30 6 6 3K-T300 1000 2x2 Twill
    CCY-3K-T240H-1000 240 0.30 6 6 3K-T700 1000 2x2 Twill
    CCY-3K-S280L-1000 280 0.29 7 7 3K-T300 1000 5H Satin
    CCY-6K-P320L-1000 320 0.38 4 4 6K-T300 1000 Plain
    CCY-6K-S380L-1000 380 0.40 4.8 4.8 6K-T300 1000 5H Satin
    CCY-6K-T400L-1000 400 0.42 5 5 6K-T300 1000 Twill
    CCY-12K-T400L-1000 400 0.42 2.5 2.5 12K-T300 1000 Twill
    CCY-12K-T600H-1000 600 0.62 3.75 3.75 12K-T700 1000 Twill

    Note: Customized specific product is available.



    STORAGE

    Unless otherwise specific, CYC Carbon Fabrics should be stored in a dry and cool place with its original package.
