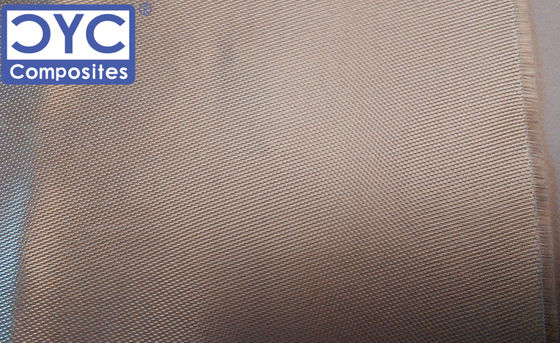

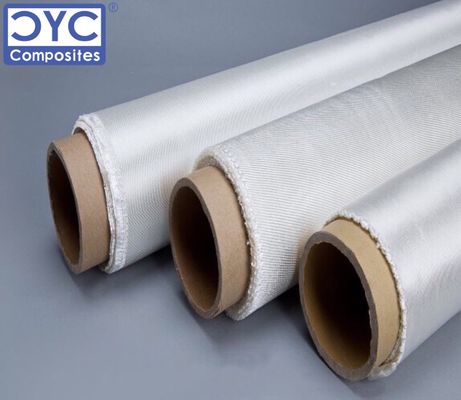

High Silica Glass Fiber Woven Fabric
CYC High silica glass fiber woven fabric is woven with inorganic silica fiberglass yarn and finished by acid-washed and special treatment (preshrunk or not) which made the fabric SiO2 above 96% and working temperature around 1000℃. It is designed for aerospace as thermal ablation materials, thermal insulation industry, fireproof material, dust collecting material, heat insulation protect material etc.
High silica fiberglass fabric is a kind of high temperature resistance,inorganic fiber. Its softening point is closely 1700°C and it can be used under 900°C situation for a long time.
PRODUCT FEATURES:
Excellent electric insulation
Good corrosion resistance
Asbestos free and no harm to human body
Anti-ablation material (thermal protection material)
Low thermal conductivity with excellent thermal insulation
TYPICAL PRODUCT SPECIFICATIONS:
| Product Code |
Area Weight
(g/m2)
|
Thickness
(mm)
|
Yarn Density (ends/cm) |
Tensile Strength (N/25mm) |
Width (mm) |
Weave Pattern |
| Warp |
Weft |
Warp |
Weft |
| HCY-P110-800 |
110 |
0.15 |
22 |
20 |
>90 |
>60 |
800 |
Plain |
| HCY-P260-1000 |
240 |
0.26 |
14 |
14 |
>290 |
>190 |
1000 |
Plain |
| HCY-T300-920 |
300 |
0.35 |
18 |
12 |
>300 |
>250 |
920 |
Twill |
| HCY-S500-920 |
500 |
0.60 |
18 |
13 |
>500 |
>400 |
920 |
8H Satin |
| HCY-S600-1000 |
600 |
0.70 |
18 |
13 |
>600 |
>500 |
1000 |
8H Satin |
| HCY-S880-920 |
800 |
1.00 |
18 |
13 |
>800 |
>600 |
920 |
12H Satin |
| HCY-S1200-1000 |
1200 |
1.30 |
18 |
13 |
>1000 |
>750 |
1000 |
12H Satin |
| HCY-S600H-860 |
600 |
0.70 |
18 |
13 |
>500 |
>400 |
860 |
8H Satin |
| HCY-S1200H-860 |
1200 |
1.30 |
18 |
13 |
>750 |
>600 |
860 |
12H Satin |
Notes: Customized specifications order is available.
APPLICATIONS:
1. High temperature insulation materials
2. High temperature gas/liquid filtration material or distinguisher materials and dust collecting material
3. Electronic equipment heat insulation materials
4. Fire-proof materials (fireproof protective cloth, fireproof curtain, fireproof blanket etc.)
5. Aerospace thermal ablation materials
6. Engine exhaust insulation materials
7. Industrial metallurgy & furnace thermal insulation materials
