    Product Details:

    Place of Origin: Made in China
    Brand Name: CYC
    Certification: ISO9001:2008
    Model Number: CCY55-12K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000KG
    Price: USD28~15000 per KG
    Packaging Details: Standard Exporting Caron Boxes and Pallets, 20"FT container can load around 8640KG.
    Delivery Time: 15~20 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 5000 tons per year
    Contact Now
    Detailed Product Description
    Carbon Fiber Type: PAN (Polyacrylonitrile) Based Carbon Fiber Filament Diameter: 5, 7μm
    Linear Density: 198tex ~ 1600tex Density: 1.74~1.82g/ Cm³
    Tensile Strength: 3700~6400MPa Tensile Modulus: 230~300GPa
    Elongation: 1.4~2.2% Oil Content: 0.8~1.2%
    Coefficient Of Variation: ≤6.0%

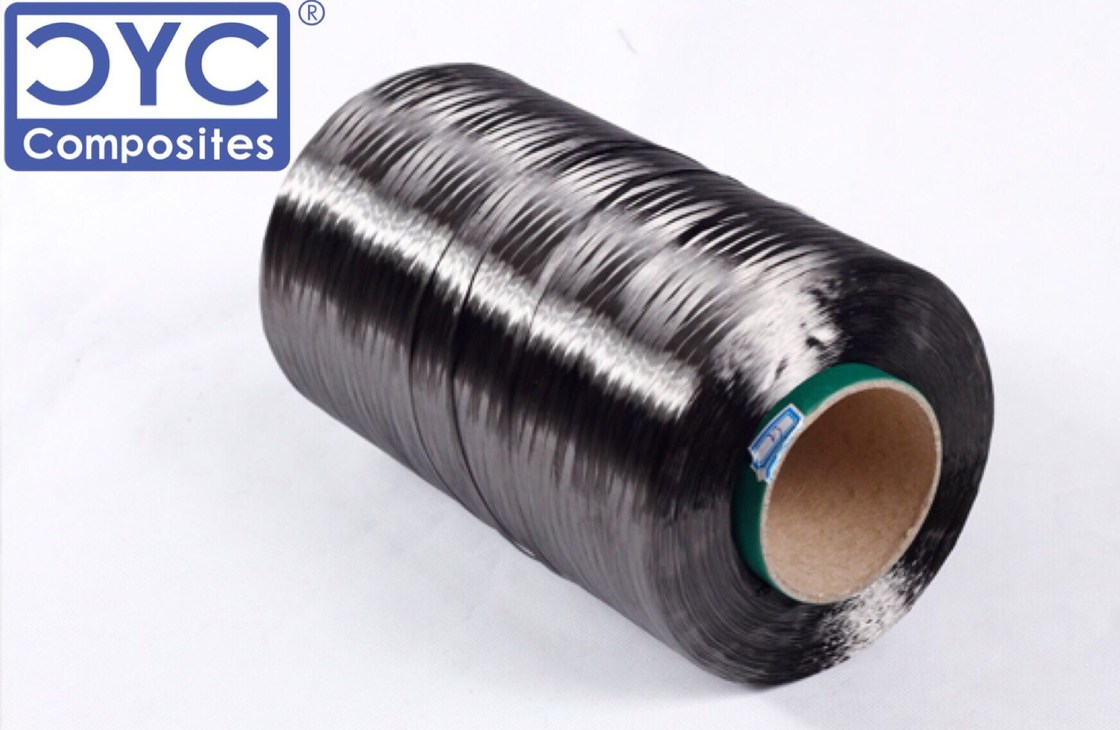

    CARBON FIBER



    CYC PAN (polyacrylonitrile) based carbon fiber is a kind of new high performance reinforcement raw material in the world. Due to its high tensile strength, high modulus, high temperature resistance, corrosion resistance, fatigue resistance, creep resistance, excellent electric & heat conduction and low thermal expansion coefficient properties, it is widely used in aerospace & aviation industry, oil & chemical industry, automobile industry, architecture industry, communication industry, sporting & recreational goods industry, shipbuilding industry and civil industry etc.



    PRODUCT FEATURES:
    High tensile strength
    High tensile modulus
    High temperature resistance
    Excellent corrosion resistance
    Excellent electric & heat conduction



    TYPICAL PRODUCT SPECIFICATIONS:

    Product Code Specification Linear Density (g/km) Filament Diameter (μm) Tensile Strength (MPa) Tensile Modulus (GPa)

    Elongation

    (%)

    Density

    (g/ cm³)
    CCY35 3K 198 7 3500 235 1.3 1.78
    6K 400 7 3500 235 1.3 1.78
    12K 800 7 3500 235 1.3 1.78
    CCY40 3K 198 7 4000 230 1.6 1.78
    12K 800 7 4000 230 1.6 1.78
    CCY45 3K 198 7 4500 240 1.9 1.80
    12K 800 7 4500 240 1.9 1.80
    24K 1600 7 4500 240 1.9 1.80
    CCY49 3K 198 7 4900 240 2.0 1.80
    12K 800 7 4900 240 2.0 1.80
    24K 1600 7 4900 240 2.0 1.80
    CCY55 12K 450 5 5500 300 2.0 1.81
    24K 900 5 5500 300 2.0 1.81
    CCY59 12K 450 5 5900 300 2.0 1.79

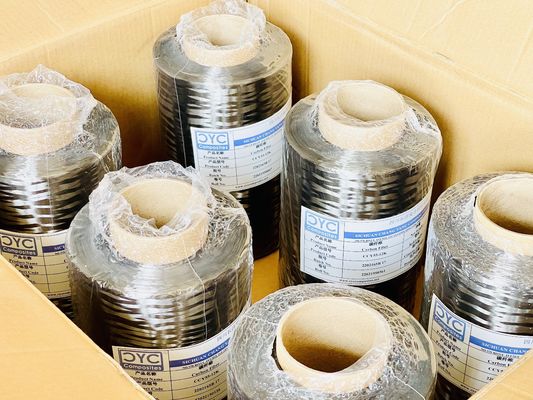

    PACKAGING:

    Specification Bobbin N.W. (KG) Bobbin OD (mm) Carbon Fiber Length (m) Bobbins per Carton Carton N.W. (KG) Carton Size (mm)
    3K 1 115 5000 12 12 535x395x310
    6K 2 142 5000 9 18 480x480x310
    12K 4 182 5000 6 24 560x380x310



    STORAGE:

    Unless otherwise specified, the product should be stacked in dry and cool place with its original pakcing, do not open the package before use.
