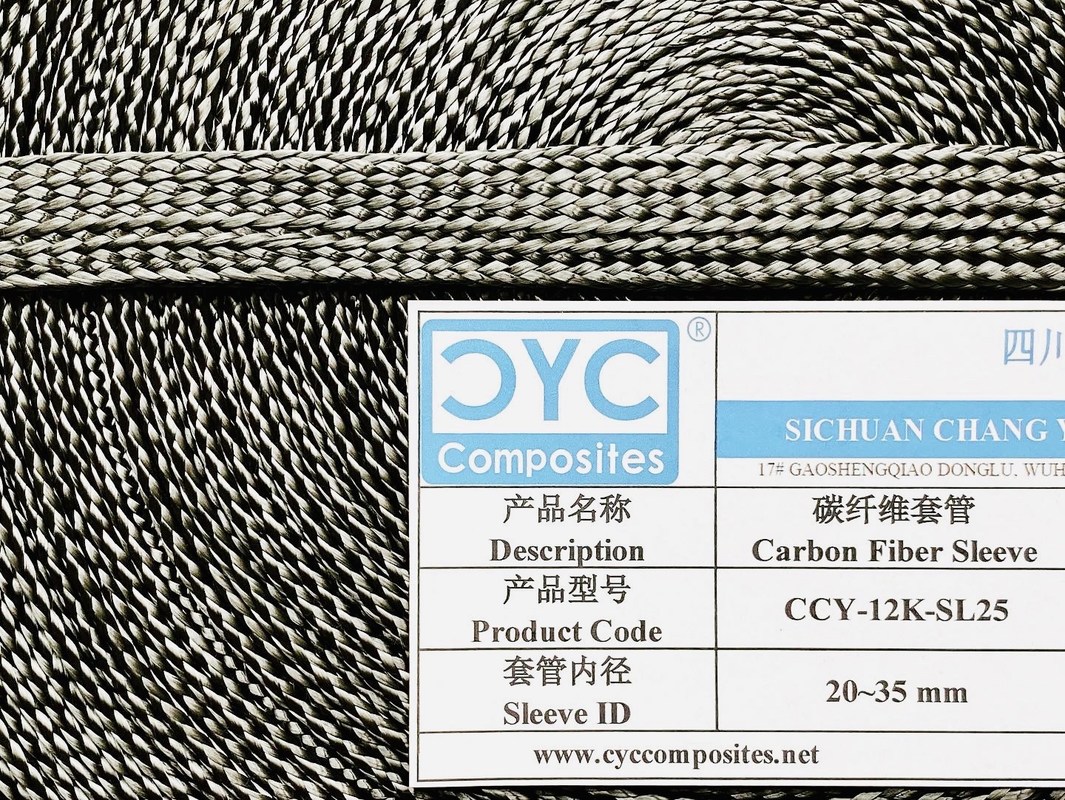

CYC Carbon Fiber Braided Sleeve (CCY-3K-SL)

Product Details:

Place of Origin:	Made in China
Brand Name:	CYC
Certification:	ISO9001:2008
Model Number:	CCY-12K-SL25

Payment & Shipping Terms:

Minimum Order Quantity:	100 meters
Price:	USD10~100 per meter
Packaging Details:	packed by standard export cartons and pallets
Delivery Time:	around 20~40 days during COVID-19
Payment Terms:	T/T, L/C, Western Union, D/A, D/P, MoneyGram
Supply Ability:	10000 meters per month

Contact Now

Detailed Product Description

CARBON FIBER BRAIDED SLEEVE (CCY-SL)

CYC Carbon Fiber Braided Sleeve is a kind of high-performance material which is braided with PAN carbon fiber yarn. With excellent tensile strength and tensile modulus, light weight and good mechanical properties, carbon fiber sleeve is designed for CFRP tubes, pipes, sports goods and auto parts etc.

Carbon Fiber Density	3K, 6K, 12K, 24K
Inner Diameter	8~130 mm
Roll Length	50~100 meters

PRODUCT FEATURES:
 High strength and light weight
 Excellent corrosion resistance
 Outstanding uniform smooth surface
 Excellent electrical and heat conduction
 Excellent mechanical property

TYPICAL PRODUCT SPECIFICATIONS:

Product Code	Woven Diameter (mm)	Carbon Fiber Density &Grade	Unit Weight (g/m)	Woven Pattern
CCY-3K-SL10	8~12	3K-T300	10	Braided
CCY-3K-SL15	13~18	3K-T300	13	Braided
CCY-3K-SL20	19~22	3K-T300	15	Braided
CCY-3K-SL30	20~40	3K-T300	20	Braided
CCY-3K-SL45	40~50	3K-T300	25	Braided
CCY-3K-SL55	50~60	3K-T300	30	Braided
CCY-6K-SL20	15~25	6K-T300	20	Braided
CCY-6K-SL25	18~30	6K-T300	25	Braided
CCY-6K-SL30	19~35	6K-T300	30	Braided
CCY-6K-SL40	30~50	6K-T300	40	Braided
CCY-12K-SL30	20~35	12K-T300	40	Braided
CCY-12K-SL35	30~40	12K-T300	50	Braided
CCY-12K-SL40	35~50	12K-T300	60	Braided
CCY-12K-SL60	40~70	12K-T300	90	Braided
CCY-12K-SL80	60~100	12K-T300	100	Braided
CCY-12K-SL120	100~130	12K-T300	120	Braided
CCY-24K-SL110	65~127	24K-T300	235	Braided

Notes: Customized specific order is available
