CYC Composites is Your Professional Reliable Partner in Composites
Reinforcement Raw Materials Solutions from China.
|Place of Origin:||Chengdu, China|
|Minimum Order Quantity:||1000 KG|
|Packaging Details:||Packing by Standard Export Pallet|
|Delivery Time:||30~50 days during COVID-19|
|Payment Terms:||T/T, L/C, Western Union, D/A, D/P, MoneyGram|
|Supply Ability:||10000MT per Month|
|Glass Fiber Type:||E-CR Glass Fiber||Surface Treatment:||Silane Sizing|
|Roving Structure:||Assembled Roving||Suitable Process:||Spray Up|

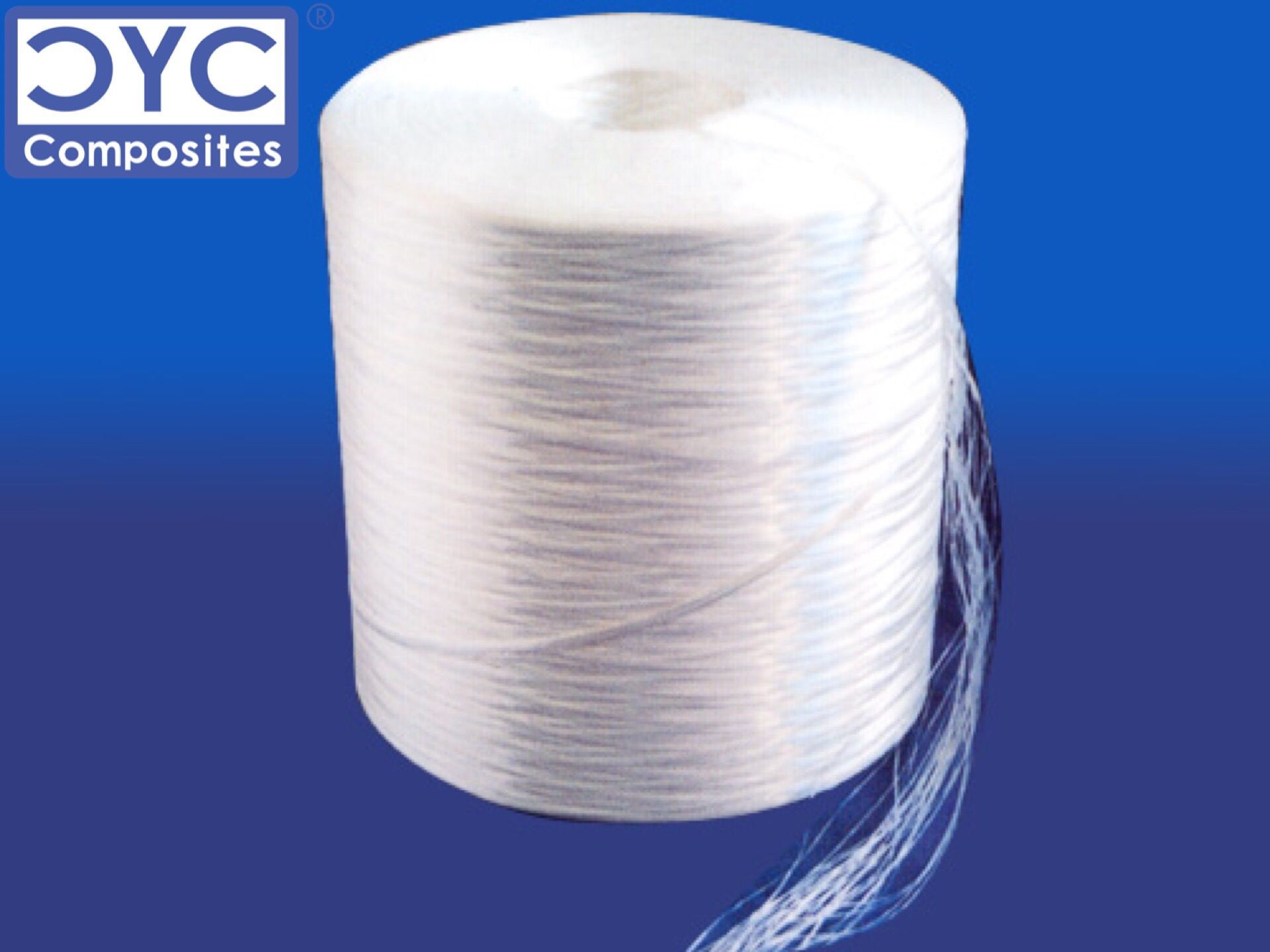

CYC FIBERGLASS GUN ROVING
CYC Fiberglass Gun Roving is is coated with special reinforced silane sizing and designed for spray up molding process specially.It is compatible with unsaturated polyester and vinly-ester resin system. With excellent choppability, even tension, anti-static, good dispersion, fast wet-out properties, it is mainly used in manufacturing fiberglass automobile parts, boat hulls, sanitary products, pipes, swimming pool body, large flat panels & sheets, storage tanks and cooling towers etc.
|Glass Type||E-CR Glass|
|Filament Diameter||13 μm|
|Linear Density||2400, 4800 tex|
Even tension with excellent choppability
Low static with good dispersion
Fast wet-out in resin with easy air release
TYPICAL PRODUCT SPECIFICATIONS
|Product Code||Filament Diameter (μm)||Linear Density (tex)||Tensile Strength (N/tex)||Moisture Content (%)||Loss On Ignition (%)||Compatible Resin||Application|
Fast wet-out in resin.
Suitable for boat hulls, bathtubs, large flat panels.
Medium rate wet-out in resin.
Special for vertical plane product
CYC Fiberglass Gun Roving is packed by stnadard export pallets.
|Bobbin Height (mm)||260||260|
|Bobbin Inside Diameter (mm)||160||160|
|Bobbin Outside Diameter (mm)||270||310|
|Bobbin Weight (KG)||16||22|
|Number of Layers||3||4||3||4|
|Number of Bobbins per Layer||16||12|
|Number of Bobbins per Pallet||48||64||36||48|
|Net Weight per Pallet (KG)||768||1024||792||1056|
Unless otherwise specified, CYC Fiberglass Gun Roving should be stacked in dry and cool place with it's original package.
