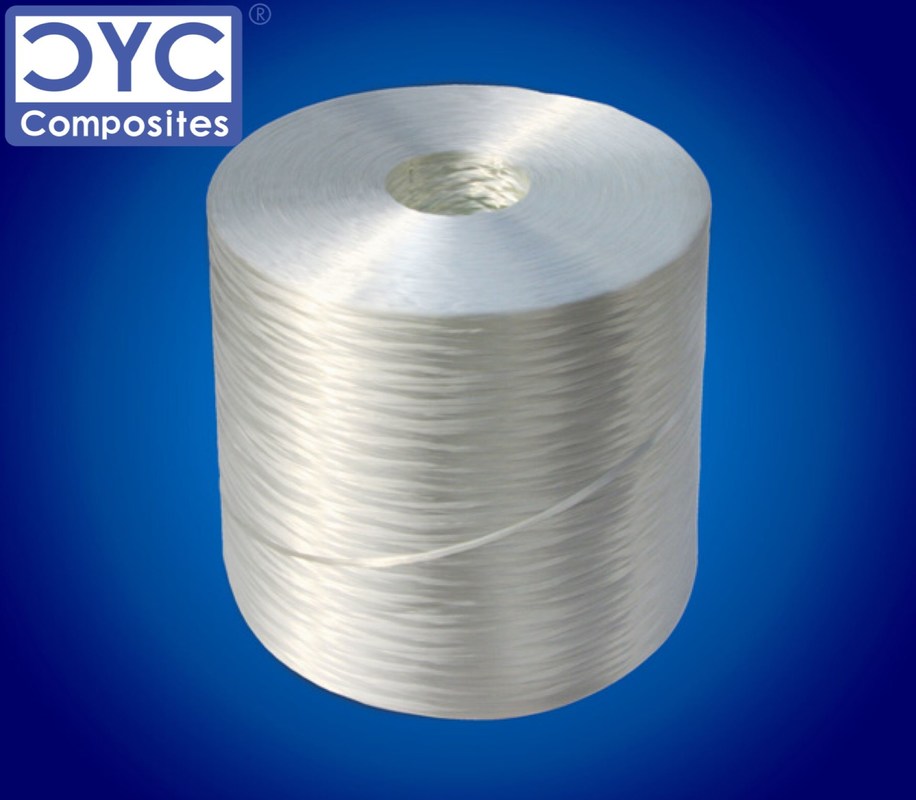

Fiberglass Roving For Pultrusion
CYC Fiberglass roving for pultrusion is coated with suitable silane sizing which is compatible with unsaturated polyester(UP), vinyl ester (VE), epoxy (EP) and phenolic resin etc. Due to its good abrasion resistance, excellent mechanical and high electric insulation performance properties, it is suitable for manufacturing FRP pultrusion products particularly, such as fiberglass rebar, profiles, rods, tubes, cable trays, ladders, beams, sheets, insulation cord rod and so on.
Product Proeprties:
a. Excellent Mechanical properties.
b. Good Concentration and Tapability
c. Good Compatibility with Epoxy Resin
d. Excellent Electrical Insulation Perfromance
e. Excellent Abrasion Resistance
Technical Parameters:
|
Linear density
|
Filament diameter
|
Moisture content
|
LOI
|
|
±5%
|
±1um
|
≤0.10%
|
0.55±0.15%
|
TYPICAL PRODUCT SPECIFICATIONS:
| Product Code |
Filament Diameter (μm) |
Linear Density (tex) |
Tensile Strength (N/tex) |
Moisture Content (%) |
Loss On Ignition (%) |
Compatible Resin |
|
ECY150DP
ECR150DP
|
13~24 |
600, 1200, 2200, 2400, 4400, 4800, 8800, 9600 |
≥0.40 |
≤0.10 |
0.55±0.15 |
UP
VE
|
|
ECY256DP
ECR256DP
|
13~24 |
600, 1200, 2200, 2400, 4400, 4800, 8800, 9600 |
≥0.40 |
≤0.10 |
0.55±0.15 |
EP |
PACKAGING:
The roving bobbins are packed by standard export pallet.
| Bobbin Height (mm) |
260 |
260 |
| Bobbin Inside Diameter (mm) |
160 |
160 |
| Bobbin Outside Diameter (mm) |
270 |
310 |
| Bobbin Weight (KG) |
16 |
22 |
| Number of Layers |
3 |
4 |
3 |
4 |
| Number of Bobbins per Layer |
16 |
12 |
| Number of Bobbins per Pallet |
48 |
64 |
36 |
48 |
| Net Weight per Pallet (KG) |
768 |
1024 |
792 |
1056 |
STORAGE
Fiberglass roving should be stored in its original packing in a dry and cool place. Best conditions are at temperatures from 15℃ to 35℃ and humidity between 35% to 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layer, care should be taken to correctly and smoothly move the top pallet.
Unless otherwise specified, the roving should be stacked in dry and cool place, do not open the package before use.
