CYC Fiberglass Flooring Mat (Glass Scrim)

Product Details:

Place of Origin:	China
Brand Name:	CYC
Certification:	ISO 9001:2015
Model Number:	ECY-SFM

Payment & Shipping Terms:

Minimum Order Quantity:	100,000SQM
Price:	0.26~0.35/SQM
Packaging Details:	standard export package
Delivery Time:	7~10 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1,000,000 SQM per month

Contact Now

Detailed Product Description

Product Name:	Fiberglass Non-Woven Mat	Woven Structure:	Wet Non-Woven Mat
Applications:	Flooring Mat

FIBERGLASS FLOORING MAT (GLASS SCRIM)

CYC fiberglass flooring mat is mainly designed as substrate raw material for square carpet. It has strong mechanical, excellent corrosion-resistant and good stable dimension properties. The fiberglass flooring mat made square carpet with good appearance and without shrinkage and deformation. It is an ideal material for indoor floor decoration.

Glass Type	E-Glass
Area Weight	35~60g/m²
Roll Width	2000~2100 mm

PRODUCT FEATURES:
Good dispersion fiber with excellent uniformity mat
Smooth surface with good corrosion resistance
High tear strength and tensile strength
Excellent dimensional stability

TYPICAL PRODUCT SPECIFICATIONS:

Product Code

Area Weight

(g/m²)

Binder Content (%)

Thickness (mm)

Wet Strength in Warp (N/50mm)

Warp Tensile Strength (N/50mm)

Weft Tensile Strength (N/50mm)

Air Permeability at 100Pa (l/m²*s)

ECY-SFM40-2100

35±5

21±3

0.40±0.05

≥49

≥130

≥80

≤4.0

ECY-SFM60-2100

60±3

21±3

0.50±0.05

≥49

≥130

≥80

≤4.5

Notes: Customized specific order is available.

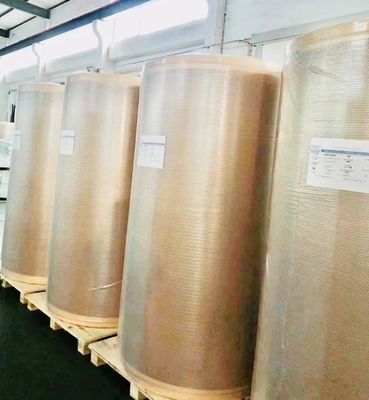

PACKAGING:

Standard roll length 3500 meters.

Each roll is winding on paper tube with polyester bag and packed by standard exporting pallet.

STORAGE:

Storage Glass Scrim in a dry and cool place with its original package, do not open the package cause damp.
