CYC FIBERGLASS CONTINUOUS FILAMENT MAT FOR PULTRUSION (ECY-CFM)

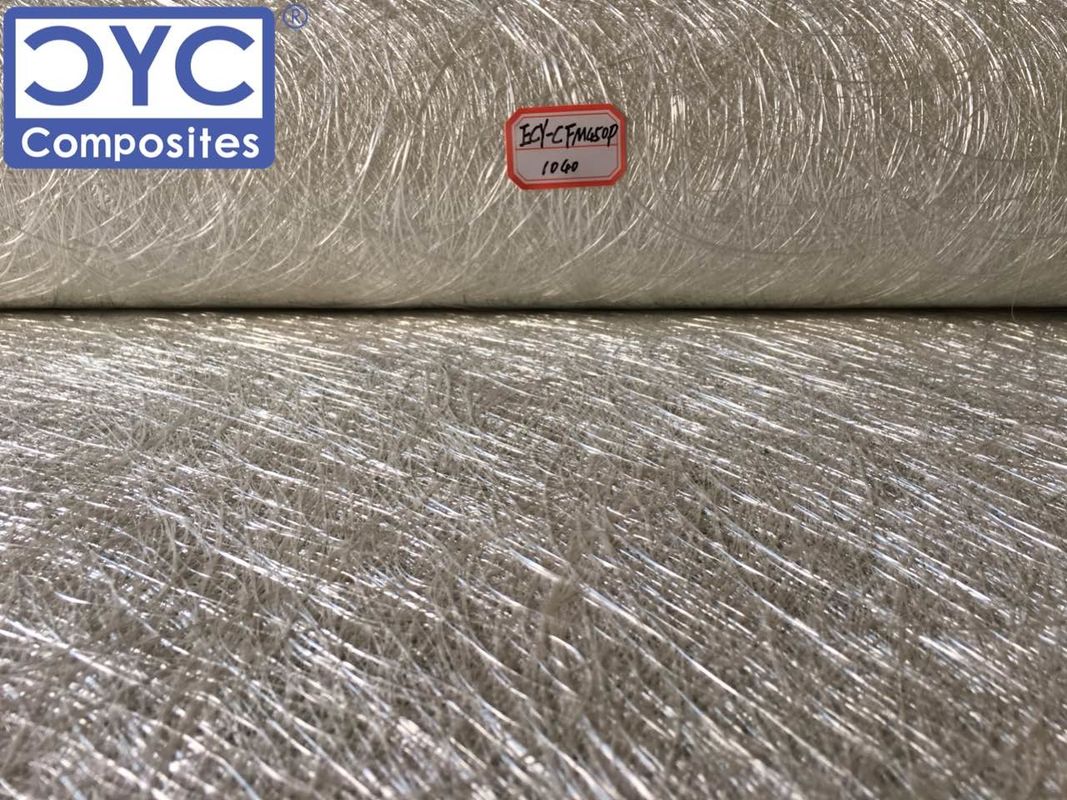

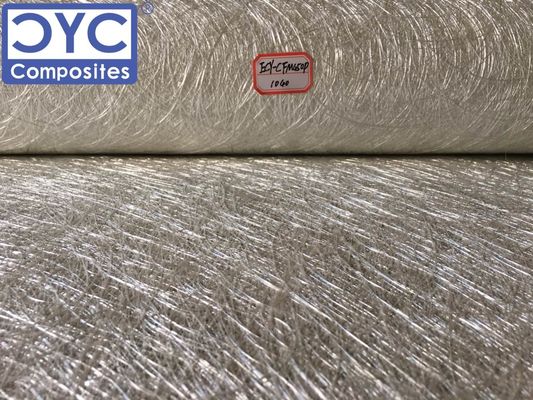

CYC Fiberglass Continuous Filament Mat (CFM) for Pultrusion Process is made of E-Glass Continuous Filament Strand Fiber by means of mechanic action of filament circles randomly oriented on production lines and bonded together with an insoluble binder. It is compatible with unsaturated polyester, vinly ester and epoxy resin etc. With excellent molding performance and mechanical properties, it is designed for pultrusion, filament winding and molding process particularly. It is an excellent reinforcement material for producing automobile structures and interior parts, refrigerator truck body, high voltage insulation materials of dry-type transformer, FRP pultrusion profiles, FRP filament winding products, electrical appliance shells etc.
| Glass Type |
E-Glass |
| Area Weight |
225~900 g/m2 |
| Roll Width |
1000~1850 mm |
PRODUCT FEATURES
Excellent weight uniformity
Excellent molding performance
Wet out in medium rate
Easy air release
Low resin consumption
Easy handling
Excellent mechanical properties
TYPICAL PRODUCT SPECIFICATIONS
| Product Code |
Area Weight
(g/m2)
|
Linear Density (tex) |
Tensile Strength (N) |
L.O.I (%) |
Moisture Content (%) |
Roll Width (mm) |
Resin |
Process |
| ECY-CFM225P-1040 |
225 |
25 |
70 |
6 |
≤0.20 |
1040 |
UP
VE
EP
|
Pultrusion |
| ECY-CFM300P-1040 |
300 |
25 |
100 |
5.5 |
≤0.20 |
1040 |
| ECY-CFM450P-1040 |
450 |
25 |
140 |
4.6 |
≤0.20 |
1040 |
| ECY-CFM600P-1040 |
600 |
25 |
160 |
4.2 |
≤0.20 |
1040 |
| ECY-CFM900P-1040 |
900 |
25 |
270 |
3.8 |
≤0.20 |
1040 |
PACKAGING

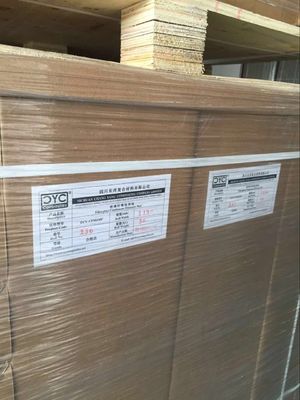

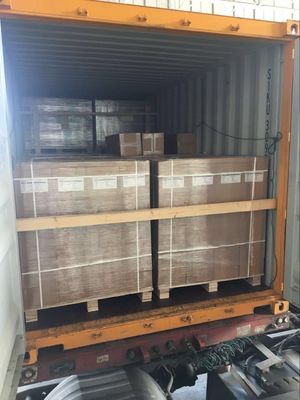

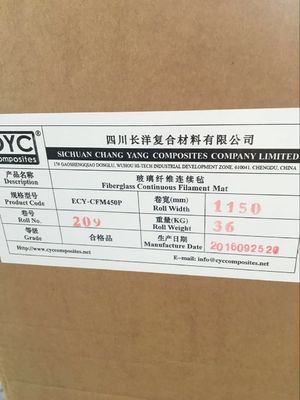

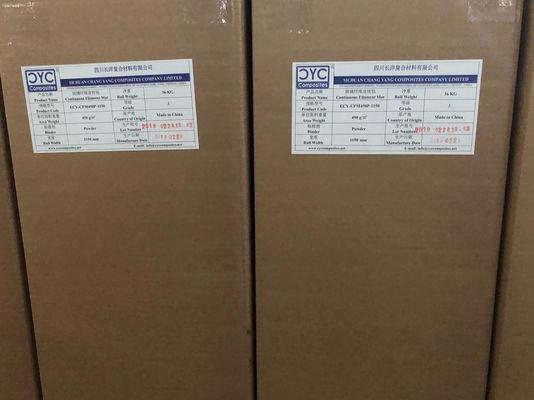

Each roll of CYC E-Glass Fiberglass Continuous Filament Mat (CFM) is winding on paper tube (ID: 3” =76mm or 4” =102mm) with polyester bag and put into individual cardboard box with marked labels then packed by standard export pallet. 16 cartons per pallet.
STORAGE
Unless otherwise specifications, CYC Fiberglass Continuous Filament Mat (CFM) should stored in a dry and cool place with its original package.
